PANEL MONTAJ DC-DC ÇEVİRİCİLER
- 2:1 geniş giriş voltaj aralığı (2:1 & 4:1 SD-500/1000 serileri)
- 1500VAC I/O izolasyonu
- Korumalar: Kısa devre, aşırı yük, aşırı voltaj
- Serbest hava akışı soğutmalı (SD-25/50/100/150/200 serileri)
- Dahili DC fan ile soğutma (SD-350/500/1000 serileri)
- Dahili uzaktan ON/OFF kontrolü ve çıkış voltaj algılama (SD-350/500/1000 serileri)
- DC OK sinyal çıkışı (SD-500/1000 serileri)
- %100 tam yük testi
- 2 yıl garanti
| ÜRÜN KODU | GİRİŞ GERİLİMİ | ÇIKIŞ GERİLİMİ | EBATLAR | |
|---|---|---|---|---|
| 25W SD SERİSİ | ||||
| SD-25A-5 | 9.2~18VDC | 5VDC | 5A | 99 x 97 x 36 mm |
| SD-25A-12 | 9.2~18VDC | 12VDC | 2.1A | 99 x 97 x 36 mm |
| SD-25A-24 | 9.2~18VDC | 24VDC | 1.1A | 99 x 97 x 36 mm |
| SD-25B-5 | 19~36VDC | 5VDC | 5A | 99 x 97 x 36 mm |
| SD-25B-12 | 19~36VDC | 12VDC | 2.1A | 99 x 97 x 36 mm |
| SD-25B-24 | 19~36VDC | 24VDC | 1.1A | 99 x 97 x 36 mm |
| SD-25C-5 | 36~72VDC | 5VDC | 5A | 99 x 97 x 36 mm |
| SD-25C-12 | 36~72VDC | 12VDC | 2.1A | 99 x 97 x 36 mm |
| SD-25C-24 | 36~72VDC | 24VDC | 1.1A | 99 x 97 x 36 mm |

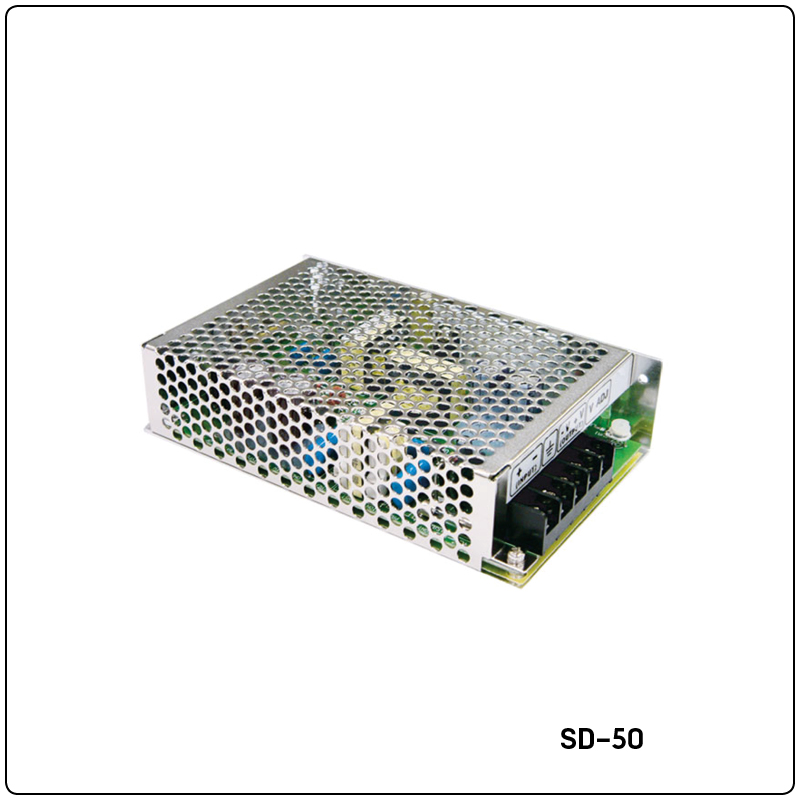

| 50W SD SERİSİ | ||||
| SD-50A-5 | 9.2~18VDC | 5VDC | 10A | 159 x 97 x 38 mm |
| SD-50A-12 | 9.2~18VDC | 12VDC | 4.2A | 159 x 97 x 38 mm |
| SD-50A-24 | 9.2~18VDC | 24VDC | 2.1A | 159 x 97 x 38 mm |
| SD-50B-5 | 19~36VDC | 5VDC | 10A | 159 x 97 x 38 mm |
| SD-50B-12 | 19~36VDC | 12VDC | 4.2A | 159 x 97 x 38 mm |
| SD-50B-24 | 19~36VDC | 24VDC | 2.1A | 159 x 97 x 38 mm |
| SD-50C-5 | 36~72VDC | 5VDC | 10A | 159 x 97 x 38 mm |
| SD-50C-12 | 36~72VDC | 12VDC | 4.2A | 159 x 97 x 38 mm |
| SD-50C-24 | 36~72VDC | 24VDC | 2.1A | 159 x 97 x 38 mm |
| 100W SD SERİSİ | ||||
| SD-100B-5 | 19~36VDC | 5VDC | 20A | 199 x 98 x 38 mm |
| SD-100B-12 | 19~36VDC | 12VDC | 8.5A | 199 x 98 x 38 mm |
| SD-100B-24 | 19~36VDC | 24VDC | 4.2A | 199 x 98 x 38 mm |
| SD-100C-5 | 36~72VDC | 5VDC | 20A | 199 x 98 x 38 mm |
| SD-100C-12 | 36~72VDC | 12VDC | 8.5A | 199 x 98 x 38 mm |
| SD-100C-24 | 36~72VDC | 24VDC | 4.2A | 199 x 98 x 38 mm |
| SD-100D-5 | 72~144VDC | 5VDC | 20A | 199 x 98 x 38 mm |
| SD-100D-12 | 72~144VDC | 12VDC | 8.5A | 199 x 98 x 38 mm |
| SD-100D-24 | 72~144VDC | 24VDC | 4.2A | 199 x 98 x 38 mm |
| 150W SD SERİSİ | ||||
| SD-150B-12 | 19~36VDC | 12VDC | 12.5A | 199 x 110 x 50 mm |
| SD-150B-24 | 19~36VDC | 24VDC | 6.3A | 199 x 110 x 50 mm |
| SD-150C-12 | 36~72VDC | 12VDC | 12.5A | 199 x 110 x 50 mm |
| SD-150C-24 | 36~72VDC | 24VDC | 6.3A | 199 x 110 x 50 mm |
| SD-150D-12 | 72~144VDC | 12VDC | 12.5A | 199 x 110 x 50 mm |
| SD-150D-24 | 72~144VDC | 24VDC | 6.3A | 199 x 110 x 50 mm |
| 350W SD SERİSİ | ||||
| SD-350B-5 | 19~36VDC | 5VDC | 57A | 215 x 115 x 50 mm |
| SD-350B-12 | 19~36VDC | 12VDC | 27.5A | 215 x 115 x 50 mm |
| SD-350B-24 | 19~36VDC | 24VDC | 14.6A | 215 x 115 x 50 mm |
| SD-350B-48 | 19~36VDC | 48VDC | 7.3A | 215 x 115 x 50 mm |
| SD-350C-5 | 36~72VDC | 5VDC | 60A | 215 x 115 x 50 mm |
| SD-350C-12 | 36~72VDC | 12VDC | 27.5A | 215 x 115 x 50 mm |
| SD-350C-24 | 36~72VDC | 24VDC | 14.6A | 215 x 115 x 50 mm |
| SD-350C-48 | 36~72VDC | 48VDC | 7.3A | 215 x 115 x 50 mm |
| SD-350D-5 | 72~144VDC | 5VDC | 60A | 215 x 115 x 50 mm |
| SD-350D-12 | 72~144VDC | 12VDC | 29.2A | 215 x 115 x 50 mm |
| SD-350D-24 | 72~144VDC | 24VDC | 14.6A | 215 x 115 x 50 mm |
| SD-350D-48 | 72~144VDC | 48VDC | 7.3A | 215 x 115 x 50 mm |

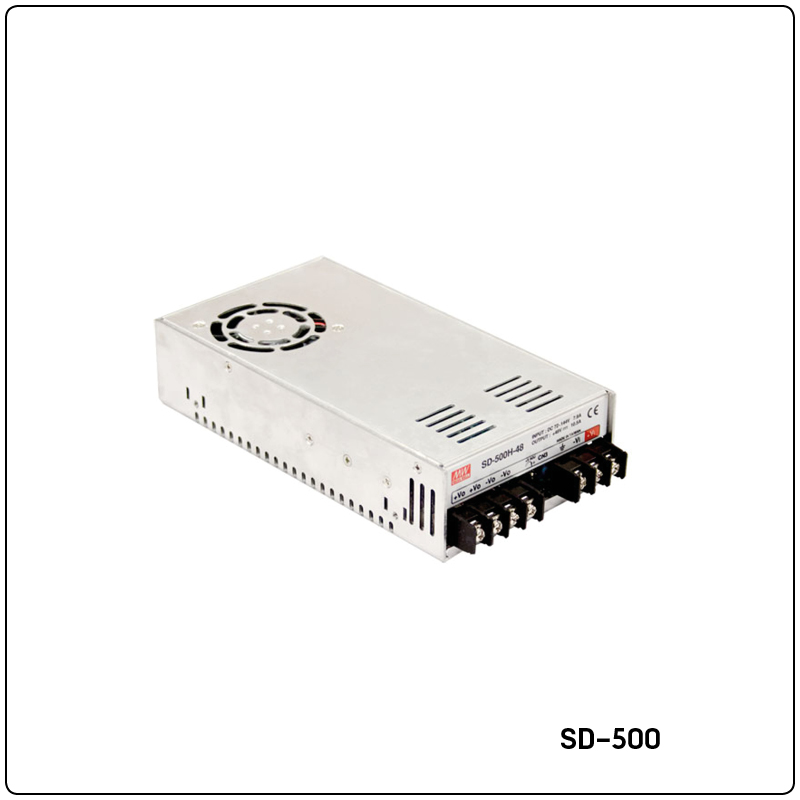

| 500W SD SERİSİ | ||||
| SD-500L-12 | 19~72VDC | 12VDC | 40A | 215 x 115 x 50 mm |
| SD-500L-24 | 19~72VDC | 24VDC | 21A | 215 x 115 x 50 mm |
| SD-500L-48 | 19~72VDC | 48VDC | 10.5A | 215 x 115 x 50 mm |
| SD-500H-12 | 72~144VDC | 12VDC | 40A | 215 x 115 x 50 mm |
| SD-500H-24 | 72~144VDC | 24VDC | 21A | 215 x 115 x 50 mm |
| SD-500H-48 | 72~144VDC | 48VDC | 10.5A | 215 x 115 x 50 mm |
| 1000W SD SERİSİ | ||||
| SD-1000L-12 | 19~72VDC | 12VDC | 60A | 295 x 127 x 41 mm |
| SD-1000L-24 | 19~72VDC | 24VDC | 40A | 295 x 127 x 41 mm |
| SD-1000L-48 | 19~72VDC | 48VDC | 21A | 295 x 127 x 41 mm |
| SD-1000H-12 | 72~144VDC | 12VDC | 60A | 295 x 127 x 41 mm |
| SD-1000H-24 | 72~144VDC | 24VDC | 40A | 295 x 127 x 41 mm |
| SD-1000H-48 | 72~144VDC | 48VDC | 21A | 295 x 127 x 41 mm |
